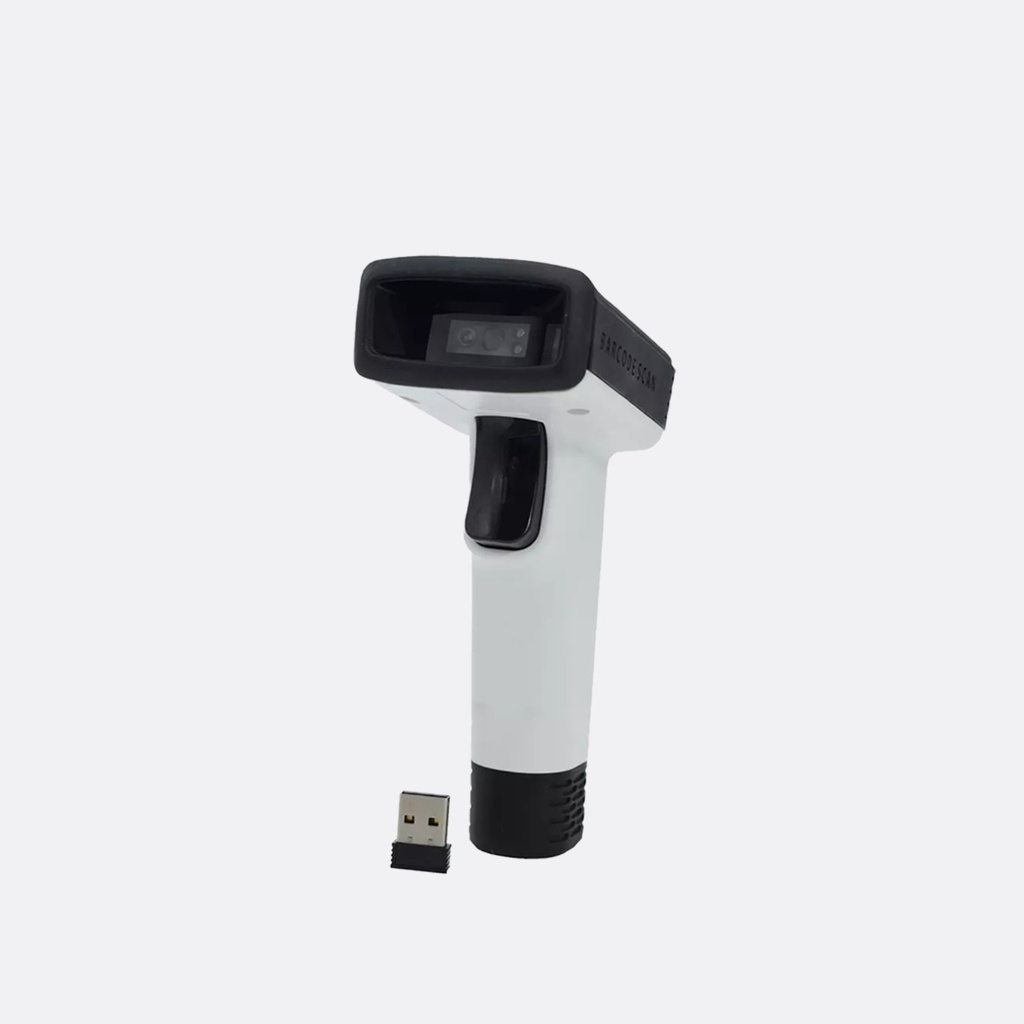

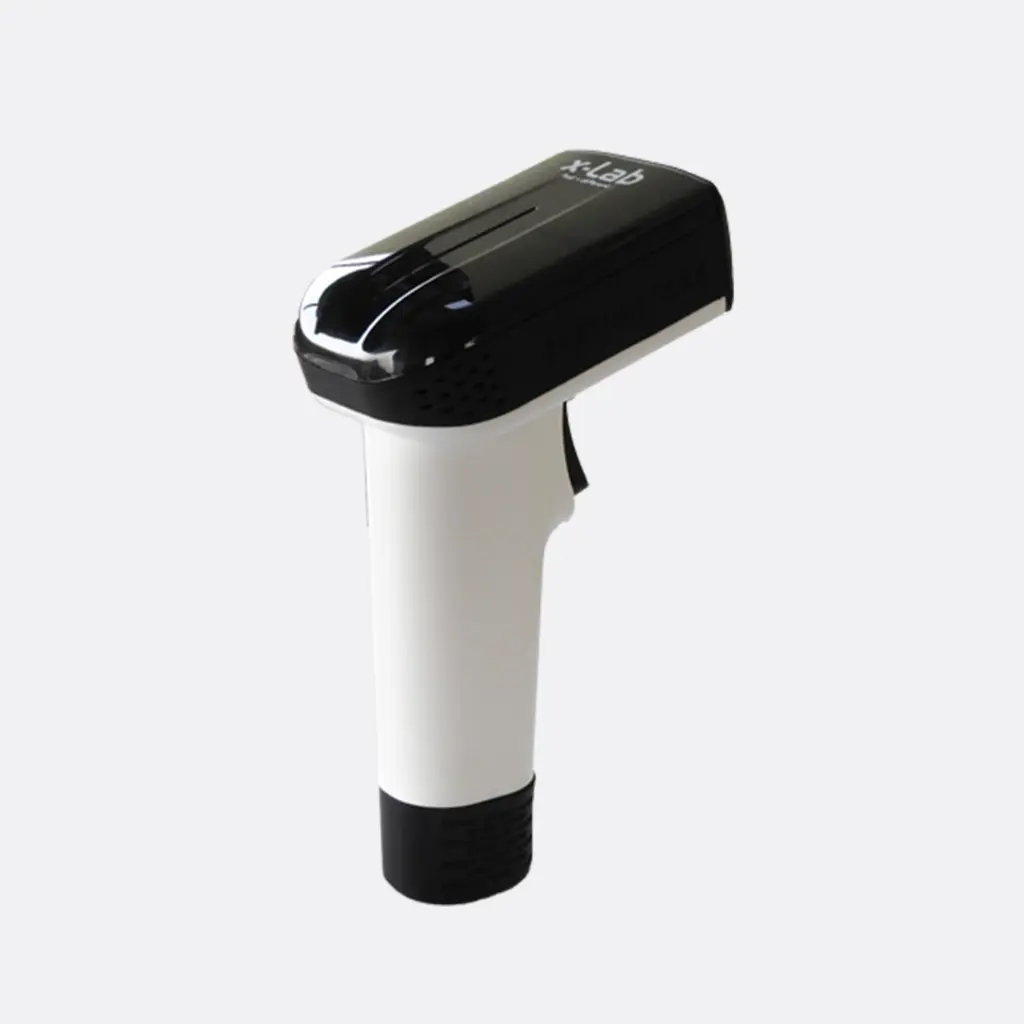

xLab 2-in-1 Wireless 2.4G + USB Handheld 2D Barcode Scanner, XBS-17W
SKU |
XBS-17W |
- Mainly used in supermarkets, convenience stores, specialty stores, payment, medical and health, etc.
- Unique shape design, rotatable base, can meet a variety of scanning application scenarios
- Using the most cutting-edge decoding algorithm technology, can interpret all kinds of complex one-dimensional codes and two-dimensional codes
- Supports scanning barcodes on screens of mobile phones and computers
- Dual buzzer sounds, which can cope with various noisy environments
- The wire is made of high and low temperature resistant material and high-quality inner copper wire, which can meet various use environments and have a longer life
- Support Mult-interfaces, plug and play, can quickly and automatically match the equipment
| Interface | 2.4G+USB |
| Cable Length | 1m |
| Input Voltage | 3.3V |
| Drop Durability | 1.5m |
| Current | 180~240ma |
| Scanning rate | 5*5cm to 35*35cm |
| CPU | 32bit |
| Battery capacity | 2000mAH |
| Viewing Angle | Horizon 37°,Vertical 28° |
| Image Sensor | Coms Sensor pixel 640*480*10FPS |
| Scan Speed | 300 times/s |
| Scan Angle | Rotation 360°, skew±55° , pitch ±55° |
| Temperature | -20°°C~65°C |
| Light Source | Red color LED |
| Depth of Field | CODE39 45mm~125mm(4mil) EAN13 60mm~260mm(13mil) QR 45mm~175mm(15mil) DM55mm~130mm(10mil) PDF417 45mm~140mm(6.7mil) |
| Print Contrast | ≥20% |
| Decoding Code | Interleaved 2of 5,ITF-6,ITF-14,ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5, Code 128, EAN-13, EAN-8,Code 39, UPC-A, UPC-E, Codabar, Standard 2 of 5, Plessey, MSI-Plessey, MSI-Plessey, GS1 Composite Code, PDF417, Data Matrix, QR Code, Maxicode |
| Optional Code | China Post, NEC 2 of 5 , Code 11, GS1 Databar,Han Xin code |
| Precision | ≥3mil |
