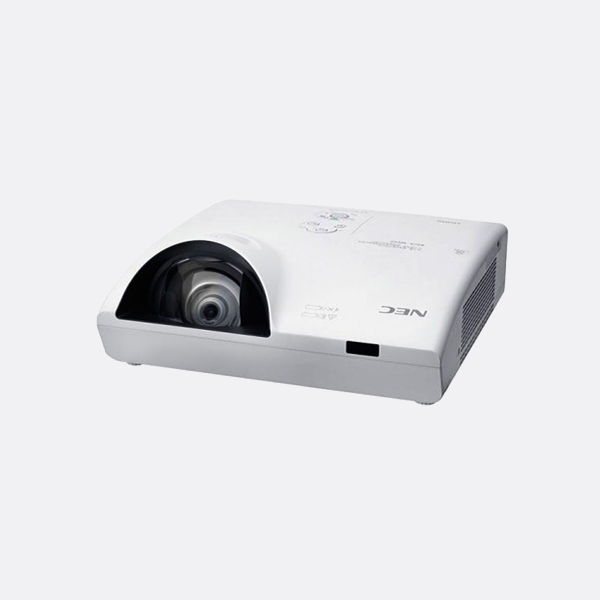

NEC-NP-CK4155XG - High Performance Short Throw Projector
- Resolution : XGA (1024dots x 768lines)
- Light output : 3,300 ANSI Lumen
- Great Visuals with Integrated Audio
- Remote controlling
- Preventing unauthorized use of projector
- Auto Power ON/OFF , Quick Start
- Free Multi-display managment software
Built for convenience while delivering powerful visuals, CK Series projectors are ideal for on the go
improvised meetings, small room conferences and excellent for classrooms. These projectors are
durable with a lamp life of up to 10,000hours, keeping you in check for the next meeting.
Assigned with a unique feature of remote controls, multiple projectors can be operate at your
fingertips with little to no hassle.
Great Visuals with Integrated Audio
Innovated with a 15,000 : 1 with iris contrast ratio, images produced
are clear and crispy. Accompanied with integrated speaker, it gives
the realistic environment to the contents, bringing it to life.
Remote controlling
Mutiple projectors and be operated separately and independently
with the same single remote control by assigning an ID number to
each projector.
Preventing unauthorized use of projector
Keep your projector secure with enhanced smart security for
keyword protection, cabinet control panel lock, security slots, and
security chains.
Auto Power ON/OFF , Quick Start
Auto Power ON/OFF and Direct Power OFF features eliminates the need to always operate the power switch. Additionally, CK Series’s quick start function will project the images quickly in 6 seconds.
Free Multi-display managment software
NaViSet Administrator-2 software is an all-in-one remote support
solution that runs from a central location and provides monitoring,
asset management and control functionality for a majority of NEC
display services and Windows computers. It is ideal for multi-device
installations over larger infrastructures
| Product | |
|---|---|
| Type | 3 LCD Type |
| Power Consumption | Normal : 0.5W or less@200V |
| Lamp Life (Normal / Eco) | 6,000H / 10,000H |
| USB Ports | Type A 1<USB> for USB Memory or Wireless LAN, 1.0A for external output. Type B 1<USB> for USB display |
| Current | 1.6A |
| Included Lens | F:1.80 / f=6.08mm Throw ratio = 80” @ 0.75m |
| Image Size | 1.20~2.540m (50”~100”) |
| Input terminals | 2 <Computer1 In , Computer2 In or Computer1 Out (Selectable), R/G/B: 0.7Vp-p/75ohm, H/V Sync: 4.0Vp-p/TTL Level, Composite Sync: 4.0Vp-p/TTL Level, Y: 1.0Vp-p/75ohm (with Negative Polarity Sync), Cb/Cr: 0.7Vp-p/75ohm |
| Output terminals | 1<Computer2 In or Computer1 Out (Selectable)> |
| Power requirements | 100-240VAC 50/60Hz |
| Built-in Speaker | 16W Monaural |
| Keystone Correction | Horizontal : Approx ±20 Max degrees (Manual) , Vertical : Approx ±20 Max degrees (Auto+Manual) |
| Brightness (Lumens) | 3,300 ANSI Lumen |
| Resolution | XGA (1024dots x 768lines) |
| Environment | |
| Operating Temperature | 41 to 104deg.F (5 to 40deg.C), 20 to 80% Humidity (Non-Condensing) (ECO mode selected automatically at 95°F to 104°F/35°C to 40°C) |
| Storage Temperature | 14 to 122deg.F (-10 to 50deg.C) , 20 to 80% Humidity (Non-Condensing) |
| Projector Display | |
| Contrast Ratio | 15,000 : 1 with Iris |
| Maximum Resolution | Up to WUXGA (1920x1200 with Advanced AccuBlend, Pixel clock frequency : less than 155MHz |
| Barcode Functions | |
| Light Source | 225W |
| Sensor | |
| Synchronization range | Horizontal : 15 to 100KHz (RGB: 24kHz or over) / Vertical : 50 to 120Hz |
| Dimensions | |
| Dimensions (WxDxH) | 459mm x 225mm x 381mm / 18.08"x 2.86"x 15.12" inch |
| Weight | |
| Product Weight | 5.2Kg |
