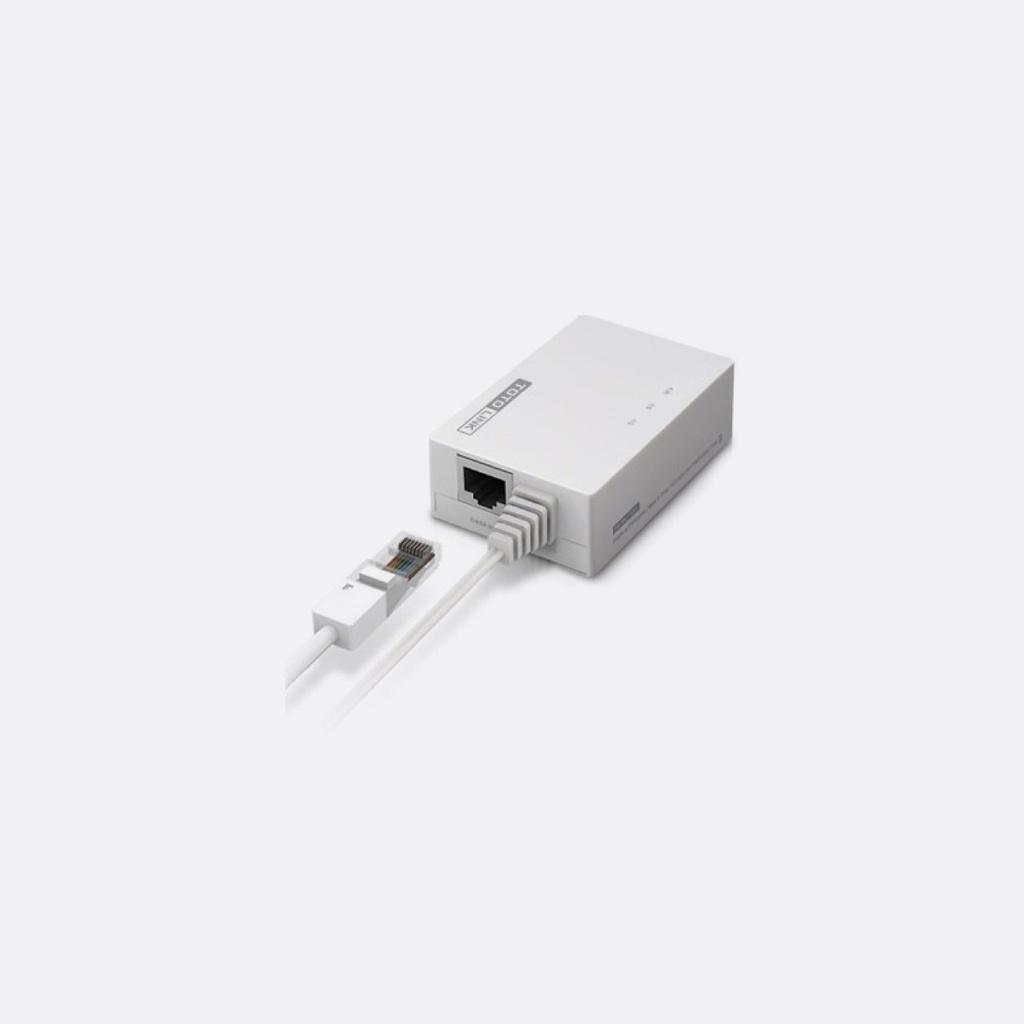

Totolink POE-200 Gigabit PoE Splitter
POE200 is a PoE Splitter with high performance and stability which is designed to separate electrical power and data signal transmitted by network cable. It fully complies with IEEE 802.3af standard and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter. Selectable Voltage 12V, 9V, or 5V can be delivered to power supply devices. So it is the perfect choice to expand both your home and office network without a power line layout
Key Features
- Complies with IEEE 802.3af standard.
- Supports gigabit data rate.
- Optional 12V DC, 9V DC, or 5V DC power supply.
- Plug-and-Play, no configuration needed.
Product | |
---|---|
Brand | TOTOLINK |
Product Name | Totolink POE-200 Gigabit PoE Splitter |
Model | POE200 |
Standards | IEEE 802.3af |
Country of Origin | South Korea |
Interface | 2*10/100/1000Mbps RJ45 Ports , 1*DC Out Port |
General Functions | Gigabit PoE Splitter |
LED Indicators | Status (Orange): 1*12V, 1*9V, 1*5V |
Output Power | 12W(12VDC)/10W(5VDC)/9W(9VDC) |
Environment | |
Warranty | 1 year |
Environment | Operating Temperature: 0oC~45oC (32oC~113oC), Storage Temperature: -40oC~70oC (-40oC~158oC), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
Power | Input: 48V DC/0.3A, Output: 5V DC/2A, 9V DC/1.1A, 12V DC/1A |
