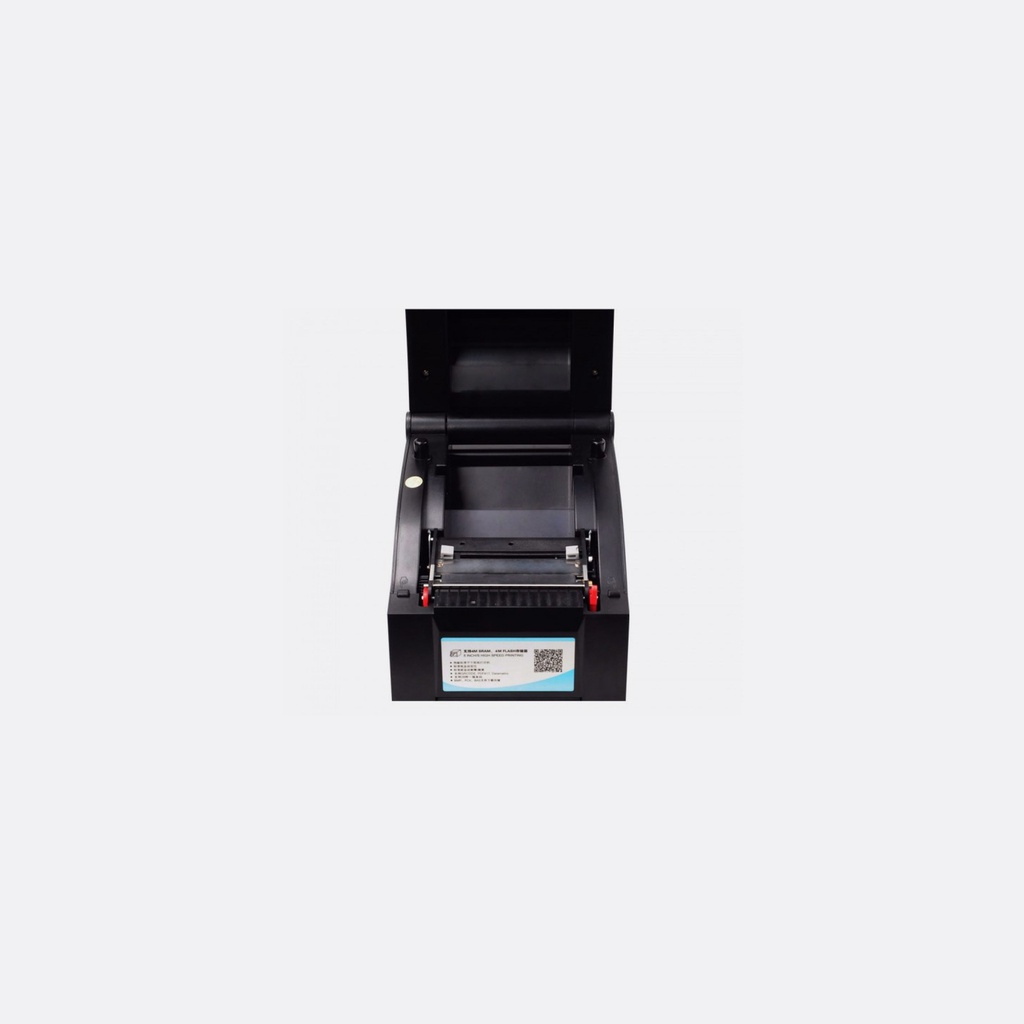

| Name | xLab Thermal Barcode Label & POS Printer |
|---|---|
| Brand | xLab |
| Model | XBLP-350T |
| Function | Serial, USB, LAN, Print Width: 16~82mm |
| Print Method | Direct thermal |
| Printing Speed | 152mm/s |
| Print Width | 16~82mm |
| Resolution | 203DPI |
| Paper Width (min~max) | 16mm～82mm |
| Paper Roll Size (min~max) | Roll external diameter: Min 25mm, Max 100mm |
| Paper Sensor | Photosensor |
| Paper Type | Paper roll, sticker, adhesive sticker etc. |
| Interface | Serial + USB + LAN |
| Memory | DRAM- 4Mb | Flash - 4Mb |
| Barcode | CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14、PDF417、QR CODE, Data Matrix |
| Font Specification (HxW) | FONT 0 to FONT 8 |
| Dimensions | 220(D) x 148(W) x 150(H)mm |
| Power | 24VDC, 2.5A |
| Temperature | Work environment: 5～45℃, 20－80%RH(no condensation) Storage environment: －40～55℃，≤93%RH（40℃） |
| Remarks | 80mm Barcode Label Printer |
| Country of Origin | United States |
| Warranty | 1 year |
| Product | |
|---|---|
| Brand | xLab |
| Product Name | XBLP-350T Thermal Barcode Label & POS Printer |
| Model | XBLP-350T |
| Country of Origin | USA |
| Interface | Serial, USB, LAN |
| Font Specification | FONT 0 to FONT 8 |
| Print Resolution | 203 DPI |
| Print Speed | 152mm/s |
| Paper Roll Size | Roll external diameter: MAX 100mm MIN 25mm |
| Paper Type | Paper roll, sticker, adhesive sticker, etc |
| Barcode | CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14、PDF417、QR CODE、Data Matrix |
| Environment | |
| Warranty | 1 year |
| Temperature | Work environment: 5～45℃, 20－80%RH(no condensation) , Storage environment: －40～55℃，≤93%RH（40℃) |
| Power | 24VDC, 2.5A |
| Printer Functions | |
| Function | Serial, USB, LAN, Print Width: 16~82mm |
| Printing | |
| Print Method | Direct thermal |
| Print Width | 16~82mm , 16 mm ~ 82 mm (min - max) |
| Paper Sensor | Photosensor |
| Dimensions | |
| Dimensions (WxDxH) | 220(D) x 148(W) x 150(H)mm |
