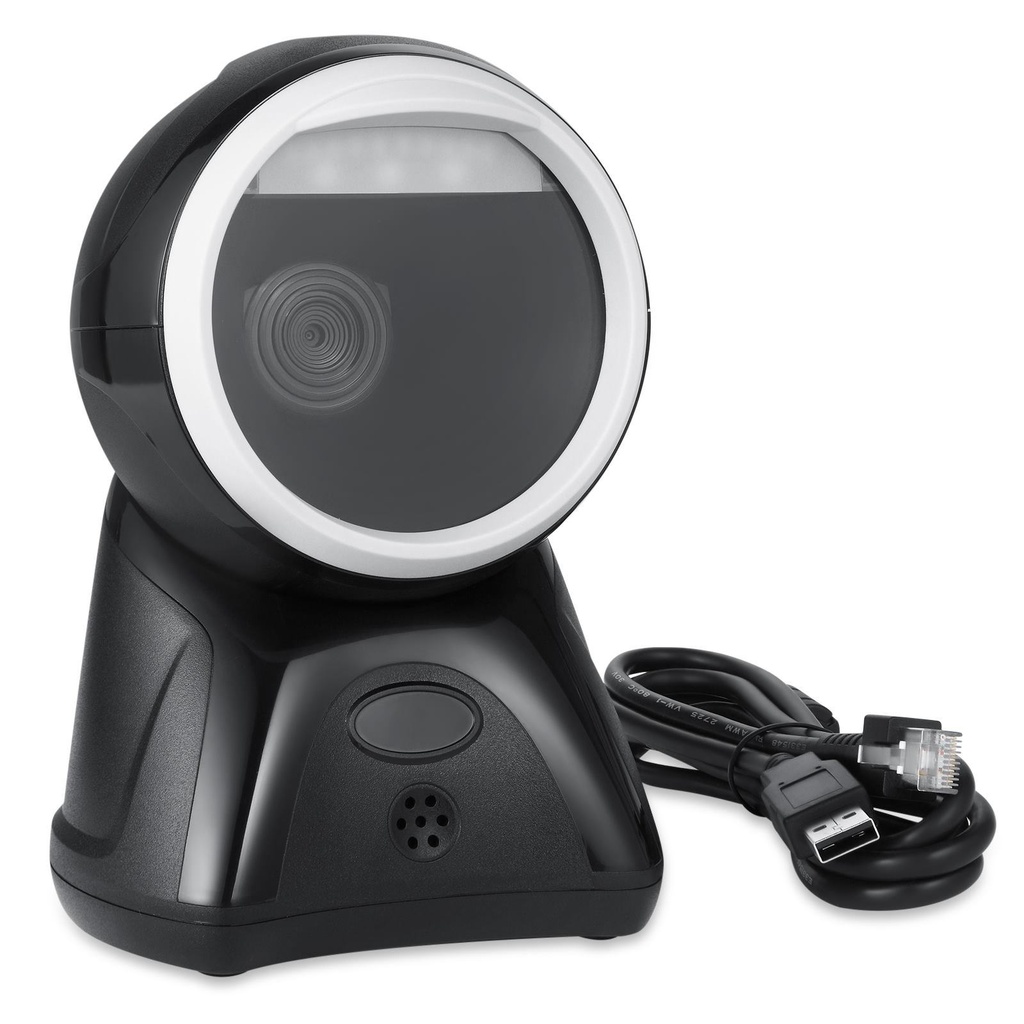

2D Barcode Scanner Module 2D Omni directional read Method omnidirectional barcode scanner
| Product | |
|---|---|
| Interface | RS-232; USB: USB COM, USBHID keyboard |
| Dimensions | 10.1 x 10.5 x 16.2cm |
| Cable | 1.5m |
| Input Voltage | 5 VDC (+/- 10%) |
| Operating Current | < 300 mA |
| 1D Barcode | Code 39 (Code 32), Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 25(Straight 2 of 5 Industrial) |
| Humidity | 5 - 95% |
| Data Modes | USB/RS232 |
| LED Indicators | Buzzer and LED Light |
| Compatible system | Android/ IOS/ Windows system |
| Drop Resistance | 1.2m |
| Pixels | 648 pixels (H)x488 pixels (V) |
| Motion Tolerance | 2.05M/s |
| Scan | |
| Scan Speed | 300times/s |
| Scanner Type | Manual trigger scan,auto-sensing scan,continuous scan |
| Scan Angle | Horizontal angle: 40°, Vertical angle: 30° |
| Environment | |
| Warranty | 1 year |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -40 to 70°C |
| Projector Display | |
| Native Resolution | 4mils |
| Barcode Functions | |
| Print Contrast | 15% |
| 2D Barcode | Aztec Code; Data Matrix; MaxiCode; QRCode;HANXIN;MicroQR Code |
| Sensor | |
| Sensor | CMOS |
| Weight | |
| Product Weight | 306g |
