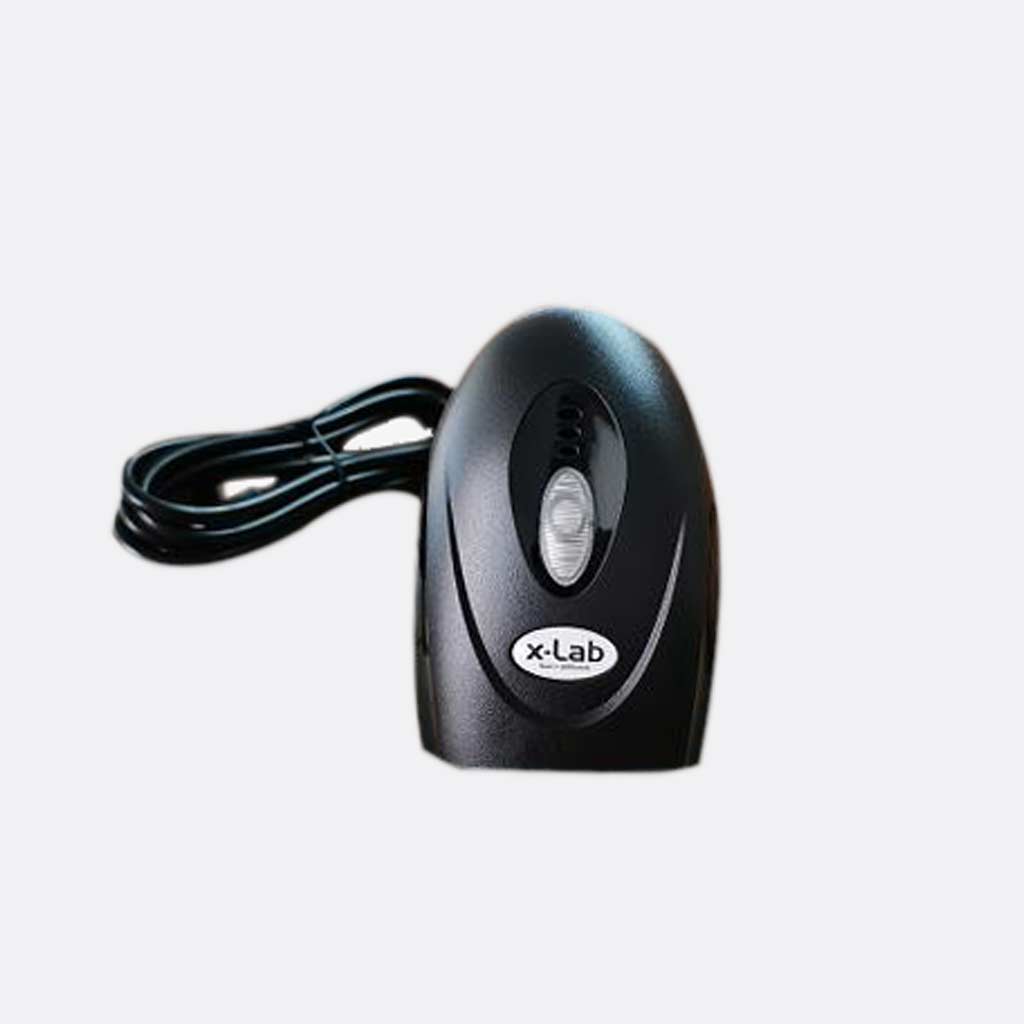

xLab XBS-763L Wired Laser Barcode Reader

---

• Brand

  • xLab

• Product Name

  • xLab XBS-763L Wired Laser Barcode Reader

• Model

  • XBS-763L

• Country of Origin

  • USA

• System Interface

  • Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS

• Microprocessor

  • 32 bit

• Dimensions

  • 161.5 × 72.5 × 55.2 mm (device only)

• Cable

  • Standard 2M straight

• Input Voltage

  • 5 VDC ±5%

• Operating Current

  • 90 mA (AVG), 150 mA (max.)

• Drop Durability

  • Designed to withstand 1.5M drops

• 1D Barcode

  • UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite

• Minimum Bar Width

  • 3 mil (Code 39) > 60% PCS

• Humidity

  • 5% – 95% RH (non-condensing)

• Standby Current

  • 55 mA typical

• Operating Temperature

  • 0°C – 50°C (32°F – 122°F)

• Storage Temperature

  • -20°C – 60°C (-4°F – 140°F)

• Light Level

  • 6, 000 Lux (fluorescence)

• Function

  • 1D Barcode Scan, 150 scans per sec, Two-colors LED

• Light Source

  • 625 nm visible LED

• Depth of Field

  • 3 mil: 0 mm, 4 mil: 0 – 40 mm, 5 mil: 0 – 45 mm,7.5 mil: 0 – 50 mm, 10 mil: 0 – 60 mm, 13 mil: 0 – 75 mm, 20 mil: 0 – 90 mm

• Scan Rate

  • 150 scans per second

• Print Contrast

  • 25% @ UPC/EAN, 100%

• Indicator

  • Two-colors LED

• Beeper Operation

  • Programmable tone & beep time

• EMC

  • CE & FCC DOC compliance, VCCI, BSMI

• Optical System

  • 2, 500 pixel linear sensor
