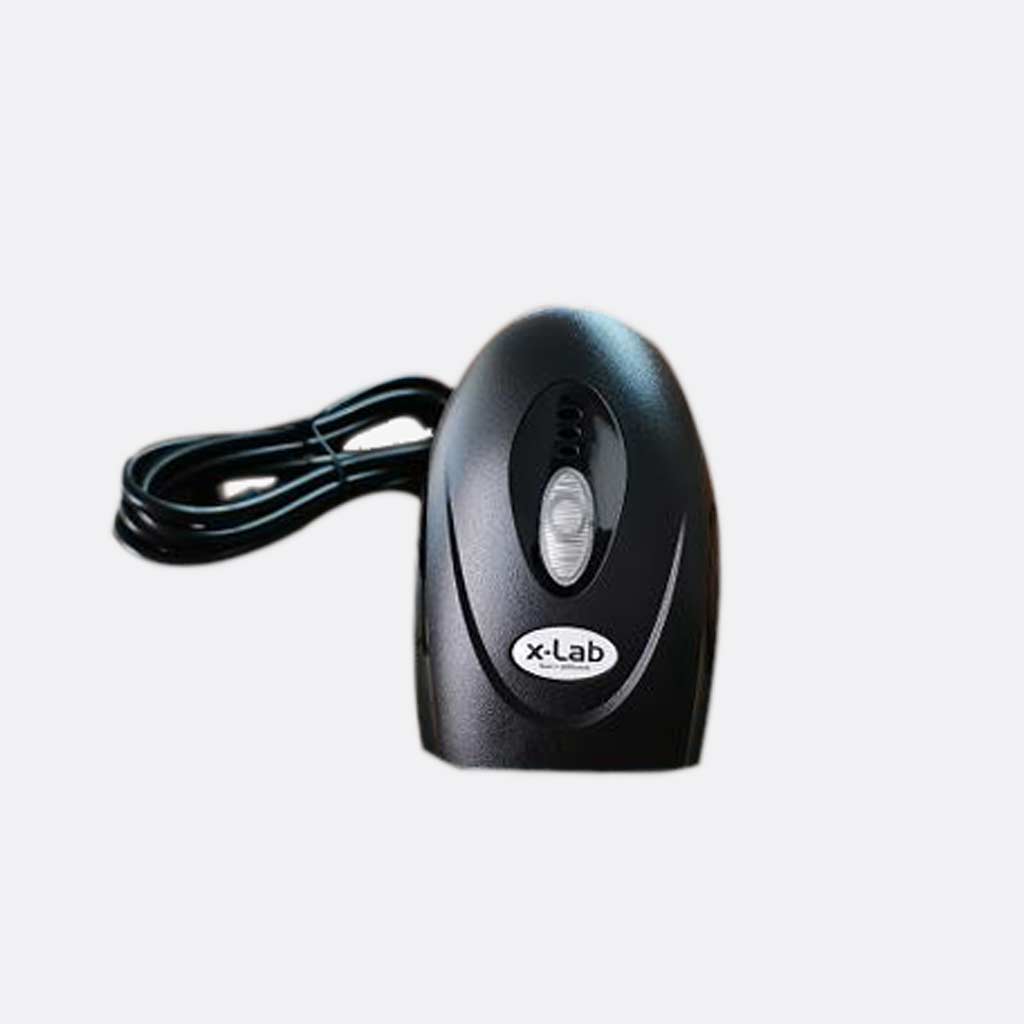

xLab XBS-763L Wired Laser Barcode Reader

(0 review)

- Proprietary Ultra scan decoding technology
- Light and rugged design
- Advanced image capture technology
- Multi-interface communication
- Ideal for beginners

₨ 4,950.00 4950.0 NPR ₨ 5,500.00

₨ 5,500.00


  • Brand
  • Product Name
  • Model
  • Country of Origin
  • System Interface
  • Microprocessor
  • Dimensions
  • Cable
  • Input Voltage
  • Operating Current
  • Drop Durability
  • 1D Barcode
  • Minimum Bar Width
  • Humidity
  • Standby Current
  • Operating Temperature
  • Storage Temperature
  • Light Level
  • Function
  • Light Source
  • Depth of Field
  • Scan Rate
  • Print Contrast
  • Indicator
  • Beeper Operation
  • EMC
  • Optical System

This combination does not exist.

Share this product :
NamexLab Barcode Scanner(Wired Laser Barcode Reader)
BrandxLab
ModelXBS-763L
Function1D Barcode Scan, 150 scans per sec, Two-colors LED
Light Source625 nm visible LED
Optical System2,500 pixel linear sensor
Microprocessor32 bit
Depth of Field3 mil: 0 mm
4 mil: 0 – 40 mm
5 mil: 0 – 45 mm
7.5 mil: 0 – 50 mm
10 mil: 0 – 60 mm
13 mil: 0 – 75 mm
20 mil: 0 – 90 mm
Scan Rate150 scans per second
Minimum Bar Width3 mil (Code 39) > 60% PCS
Print Contrast25% @ UPC/EAN, 100%
IndicatorTwo-colors LED
Beeper OperationProgrammable tone & beep time
System InterfaceKeyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Dimensions161.5 × 72.5 × 55.2 mm (device only)
CableStandard 2M straight
Input Voltage5 VDC ±5%
Standby Current55 mA typical
Operating Current90 mA (AVG), 150 mA (max.)
EMCCE & FCC DOC compliance, VCCI, BSMI
Operating Temperature0°C – 50°C (32°F – 122°F)
Storage Temperature-20°C – 60°C (-4°F – 140°F)
Humidity5% – 95% RH (non-condensing)
Light Level6, 000 Lux (fluorescence)
Drop DurabilityDesigned to withstand 1.5M drops
1D BarcodeUPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limit
RemarksHandheld Linear Image Scanner
Country of OriginUSA

Product
Brand xLab
Product Name xLab XBS-763L Wired Laser Barcode Reader
Model XBS-763L
Country of Origin USA
System Interface Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Microprocessor 32 bit
Dimensions 161.5 × 72.5 × 55.2 mm (device only)
Cable Standard 2M straight
Input Voltage 5 VDC ±5%
Operating Current 90 mA (AVG), 150 mA (max.)
Drop Durability Designed to withstand 1.5M drops
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite
Minimum Bar Width 3 mil (Code 39) > 60% PCS
Humidity 5% – 95% RH (non-condensing)
Standby Current 55 mA typical
Environment
Operating Temperature 0°C – 50°C (32°F – 122°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Light Level 6, 000 Lux (fluorescence)
Printer Functions
Function 1D Barcode Scan, 150 scans per sec, Two-colors LED
Barcode Functions
Light Source 625 nm visible LED
Depth of Field 3 mil: 0 mm, 4 mil: 0 – 40 mm, 5 mil: 0 – 45 mm,7.5 mil: 0 – 50 mm, 10 mil: 0 – 60 mm, 13 mil: 0 – 75 mm, 20 mil: 0 – 90 mm
Scan Rate 150 scans per second
Print Contrast 25% @ UPC/EAN, 100%
Indicator Two-colors LED
Beeper Operation Programmable tone & beep time
EMC CE & FCC DOC compliance, VCCI, BSMI
Optical System 2, 500 pixel linear sensor
